Machinery Program

Hemp stalk
processing line.

An automated processing line running approximately one tonne of baled stalk per hour. Three modular, direct-coupled segments. Order as a turnkey line or as individual modules.

≈ 1 t/h
Baled stalk throughput
3 streams
Fibre · Hurd · Micro-hurd

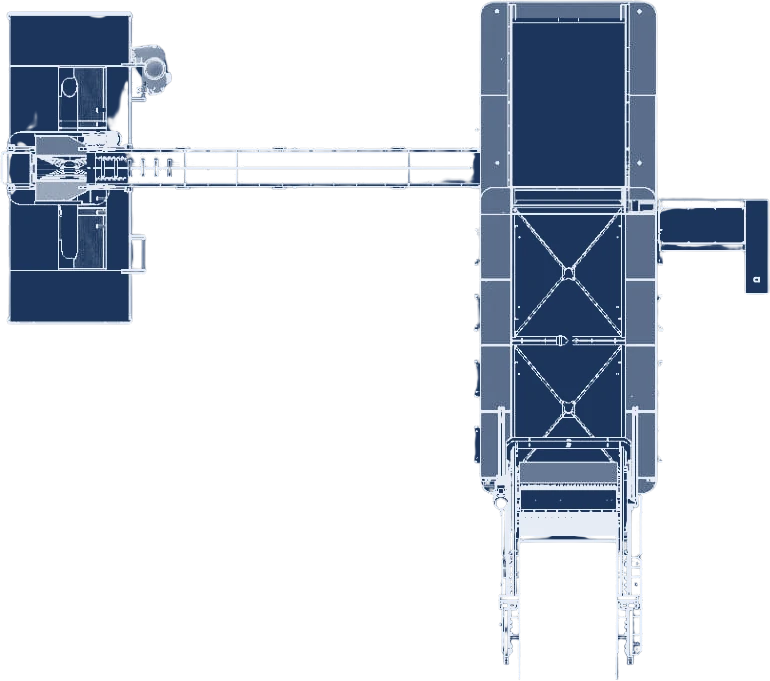

Top-down plan view of hemp stalk processing line
Plan view Bale-opener + decorticator tower
Line Segments

Each segment
in detail.

Three modules, direct-coupled and centrally controlled. Each is specified independently for infeed, crop, and output grading.

01·

Bale opening.

Bales are broken open by tine drums and metered onto the feed conveyor.

Handles retted or unretted material, round or square bales. Feed rate is operator-adjustable.

Throughput≈ 1 t/h baled stalk
BalesRound + square
OutputMetered stalk
02·

Decortication.

Paired rollers crush the stalk under calibrated pressure, breaking the woody core while leaving the bast fibre intact.

Roller gap, speed, and pressure are servo-driven and adjust tool-free.

DriveServo, VFD
FrameHeavy structural steel
OutputBast fibre + raw hurd
Decortication unit, side view with feed conveyor
Decortication unit · feed conveyor and infeed hopper
03·

Fibre cleaning.

Screens sort the output by particle size; air separation strips residual shiv from the bast fibre.

Hurd is graded into standard and micro-hurd. Cyclone extraction throughout.

StreamsFibre · Hurd · Micro-hurd
ExtractionCyclone + bag filter
EnvironmentDust-free
Technical Data

Line specifications.

Standard specifications for the integrated line. Capacity, segment selection, and automation level are set per project; custom configurations available on request.

Throughput
≈ 1 tonne/h baled stalk
Configuration
Modular segments or integrated turnkey
Duty
Continuous, multi-shift
Drives
Servo motors with VFD
Dust
Cyclone and bag filter
Control
PLC and HMI touchscreen
Input
Round and square bales, retted or unretted
Output
Fibre, hurd, micro-hurd
Power
3-phase industrial, load per build
Footprint
Per project, fits standard halls
Custom
Higher capacity and bespoke feeds on request
Per Request

Harvest equipment,
built to order.

Custom harvest and processing equipment engineered to fit your crop, scale, and field conditions. From mobile field units to in-line modules, each unit is designed per project.

Request a custom build→
  • Custom decortication roller configurations
  • High-capacity bale shredding systems
  • Belt and screw conveyor systems
  • Pneumatic material transport
  • Dust collection and filtration units
  • Automated feed and metering
  • Mobile and trailer-mounted field units
Completing the Line

Supporting equipment
and services.

Conveyors

Belt and screw conveyors for inter-segment material transfer and integrated line flow.

Dust collection

Cyclone and bag-filter systems for clean, compliant operation and by-product recovery.

Automation + control

PLC automation, HMI control, throughput monitoring, and remote diagnostics.

Training + support

Operator training, spare parts, commissioning support, and ongoing technical assistance.

Spec your
processing line.

Tell us about your operation, throughput target, and where the output needs to go.

Get in touch→
